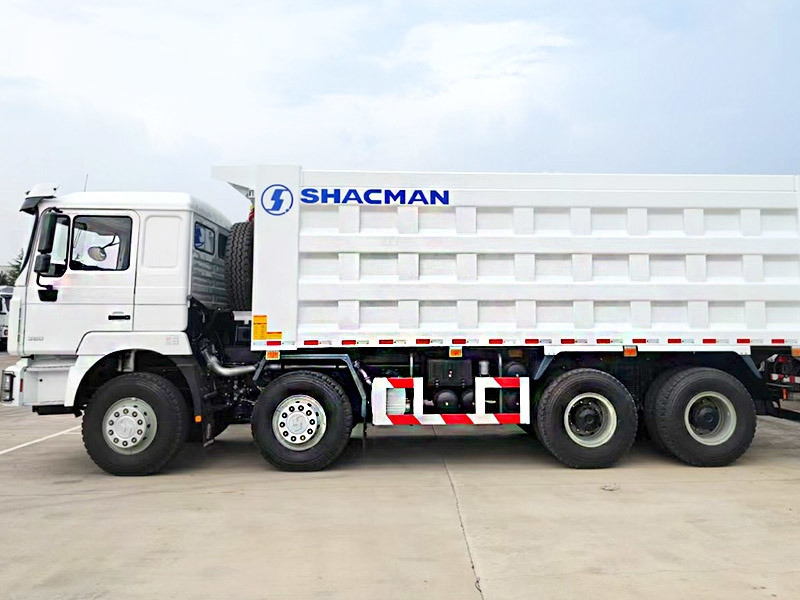

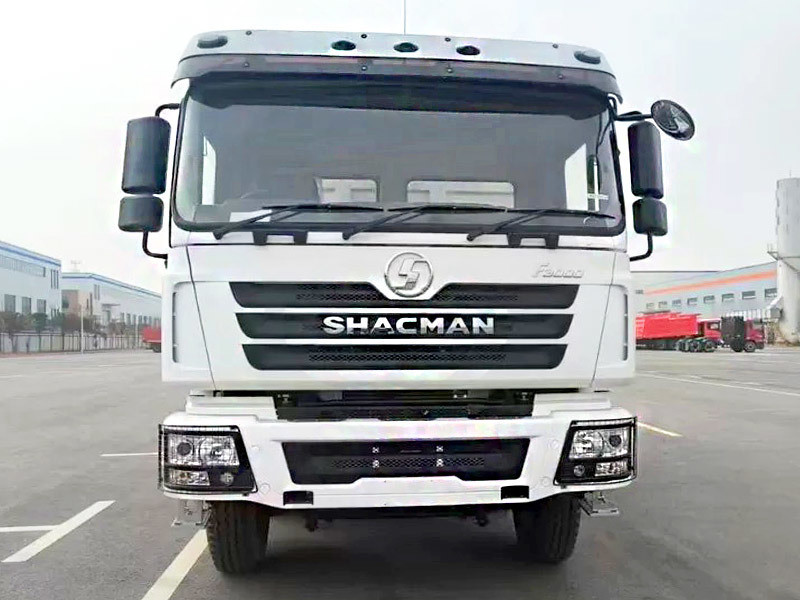

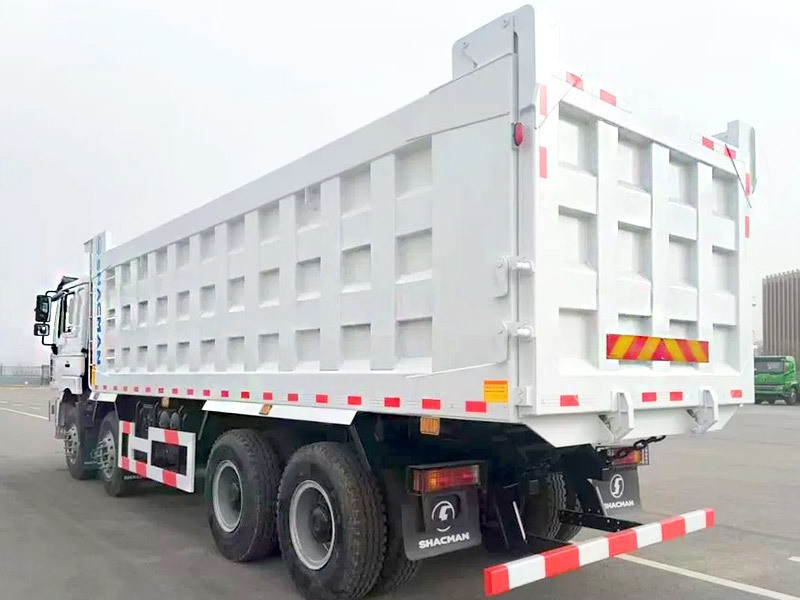

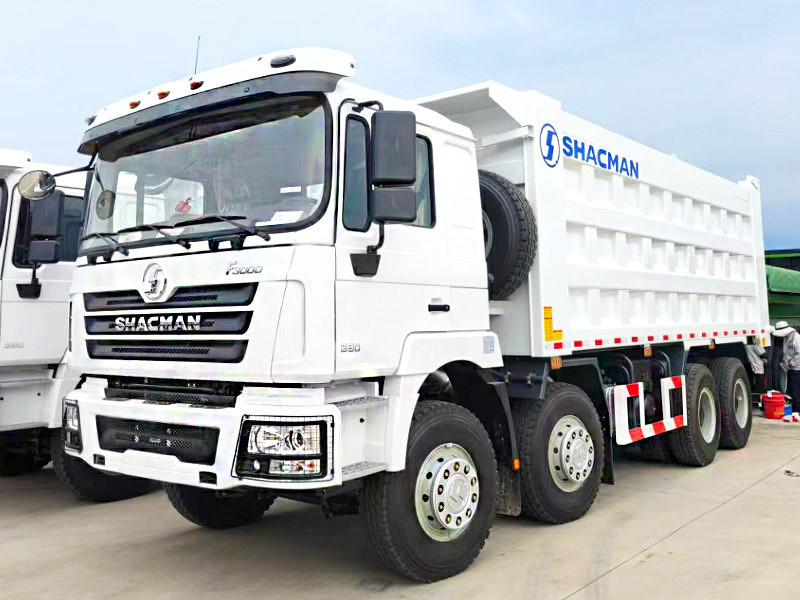

Name: SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: F3000
Price: 1,000.00 USD
Availability: InStock

Hogar > productos > Camión volquete pesado >

SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires

300L Fuel Tank Tipper Truck

12.00R20 Tires Dump Truck

Domestic Heavy Dump Truck

Lugar de origen:

Shaanxi, Xian

Nombre de la marca:

SHACMAN

Certificación:

ISO 9001/CCC

Número de modelo:

F3000

Éntrenos en contacto con

Solicitar una cita

SHACMAN F3000 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper Truck with 300L Fuel Tank and 12.00R20 Tires

Detalles del producto

Modelar:

SX3318DV366

Motor:

WP12.430E50-WEICHAI

Transmisión:

12JSD200T-B+QH50-RÁPIDO

Eje:

9.5T /2*16 T Doble etapa, relación de velocidad-4.769

Base de ruedas:

1800+3575+1400 milímetros

Neumático:

12.00R20 (10+1)

Tanque de combustible:

300L

Embrague:

φ430 Diafragma de resorte

Entrada de aire:

Filtro de aire ordinario

Chasis:

850 × 300 ((8 + 7)

suspensión:

PLATO DE PLACA MISLAYERA DEL FRANZA /TRANSIÓN PLACAS PRINCIPALES + 4 pernos en forma de U

Cabina:

top plano de la Medio-longitud

Color:

Verde rojo/verde de neón de la montaña/azul/brandy azules de Aurora White /Klein de la estrella y de

Resaltar:

300L Fuel Tank Tipper Truck

12.00R20 Tires Dump Truck

Domestic Heavy Dump Truck

Pago y términos de envío

Cantidad de orden mínima

Precio

negotiable

Detalles de empaquetado

Embalaje desnudo, con cera antes del envío.

Tiempo de entrega

45 días hábiles

Condiciones de pago

T/T, L/C

Capacidad de la fuente

1000 unidades/mes

Productos relacionados

Éntrenos en contacto con

Contacto ahora

Descripción de producto

SHACMAN F3000 Dump Truck 8x4 430Hp EuroV Yellow Domestic Front Lift Tipper

Product Overview

The SHACMAN F3000 Dump Truck is a robust 8x4 tipper designed for heavy-duty material transportation. Featuring a 430HP EuroV compliant engine and domestic front lift mechanism, this truck combines power with environmental responsibility.

Key Specifications

Model: SX3318DV366

Drive Type: 8x4

Engine: WEICHAI WP12.430E50

Power: 316kw / 430Hp

Transmission: FAST 12JSD200T-B+QH50

Emission Standard: Euro V

Technical Specifications

Category	Specification
Weight	Gross Vehicle Weight ≤70
Dimensions	Wheelbase: 1800+3575+1400 mm
Performance	Maximum speed: 40～55/75 km/h Ground clearance: >314 mm
Engine	WEICHAI WP12.430E50 316kw / 430Hp 2050 N*M maximum torque 11.596 L displacement
Drivetrain	FAST 12JSD200T-B+QH50 gearbox φ430 Diaphragm spring clutch
Braking System	Drum brakes Double circuit air brake (Service) Rear wheel spring brake (Park) WEVB engine exhaust brake (Auxiliary)
Chassis & Suspension	Parallel trapezoidal frame (850×300(8+7) mm) Multi-layered leaf springs (Front: 4 Main+4 U Bolts, Rear: 4 Main+4 U Bolts)
Axles	HANDE 9.5T front axle (MAN technology) 16T MAN Double Reduction Drive rear axle (4.769 ratio)
Other Components	12.00R20 tires 300L Aluminum fuel tank 24V electrical system with 165Ah battery
Cab Features	F3000 Medium-length flat cab Hydraulic main seat Four-point hydraulic suspension Electronically controlled automatic AC Electric windows

Key Advantages

Robust Construction: Heavy-duty chassis and suspension system provide excellent load-bearing capacity and stability for safe transportation on rough terrain.
Eco-Friendly: Complies with strict Euro V emission standards, significantly reducing nitrogen oxides (NOx) and particulate matter (PM) emissions.
