Name: SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: F3000
Price: 2,517.00 USD
Availability: InStock

Hogar > productos > Camión del tanque de agua >

SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle

300L Fuel Tank Water Truck

7.5T/2*13 Double Stage Axle Tanker Truck

4375+1400mm Wheelbase Water Tank Truck

Lugar de origen:

Shaanxi, Xian

Nombre de la marca:

SHACMAN

Certificación:

ISO9001/CCC

Número de modelo:

F3000

Éntrenos en contacto con

Solicitar una cita

SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle

Detalles del producto

Modelar:

SX5255GSSDN434

Motor:

WP10.300E22

Transmisión:

RTD-11509C con el extractor del reborde QH50

Eje:

árbol de la etapa del doble 7.5T/2*13, árbol speed-5.262

Base de ruedas:

4375+1400m m

Neumático:

12.00R20

Tanque de combustible:

300L

Embrague:

φ430 Diafragma de resorte

Entrada de aire:

Filtro de aire ordinario

Chasis:

850×300 (8+5)

suspensión:

Placas principales de la primavera de placa de /rear del frente 2 de múltiples capas + 2 pernos en f

Cabina:

top plano de la Medio-longitud

Color:

Verde rojo/de la montaña de neón/azul/Borgoña azules estrellados de Aurora White /Klein

Resaltar:

300L Fuel Tank Water Truck

7.5T/2*13 Double Stage Axle Tanker Truck

4375+1400mm Wheelbase Water Tank Truck

Pago y términos de envío

Cantidad de orden mínima

Precio

negotiable

Detalles de empaquetado

Embalaje desnudo, con cera antes del envío.

Tiempo de entrega

45 días hábiles

Condiciones de pago

T/T, L/C

Capacidad de la fuente

5000units

Productos relacionados

Éntrenos en contacto con

Contacto ahora

Descripción de producto

SHACMAN F3000 Water Tank Truck 6x4 300 EuroII White

Product Specifications

Model: SX5255GSSDN434

Drive type: 6x4

Weight: Gross Vehicle Weight ≤50

Water Tank Truck Parameters
Model	SX5255GSSDN434
Drive type	6x4
Weight	Gross Vehicle Weight ≤50
Dimensions	Wheelbase/(mm) 4375+1400
Performance	Maximum speed/(km/h) 50～70/90
Ground clearance	>314
Engine Brand	WEICHAI
Engine Model	WP10.300E22
Power/(kw/HP)	220w / 300Hp
Maximum torque / (N.M)/rpm	1240 N*M
Displacement/(L)	9.726 L
Emission standard	Euro/ II
Gear box Brand	FAST
Gear box Model	RTD-11509C with QH50 flange extractor
Clutch Type	φ430 Diaphragm spring clutch
Cooling Type	Domestic heat sink
Air inlet Type	Ordinary air filter
Brakes Type	Drum brake
Service brake	Double circuit air brake
Park brake	Rear wheel spring brake
Auxiliary brake	WEVB engine exhaust brake
Steering Type	ZF8098 technology, circulating ball steering machine
Chassis Type	Parallel trapezoidal frame with variable section
Dimensions/(mm)	850×300(8+5)

Key Features

300 horsepower (Hp) Euro II compliant engine for reduced environmental impact
Ergonomic cab design with driver comfort features including hydraulic main seat and four-point hydraulic suspension
Electronically controlled automatic constant temperature air conditioner
Electric window controls and modern instrumentation
300L aluminum fuel tank capacity
24V electrical system with 165Ah maintenance-free battery

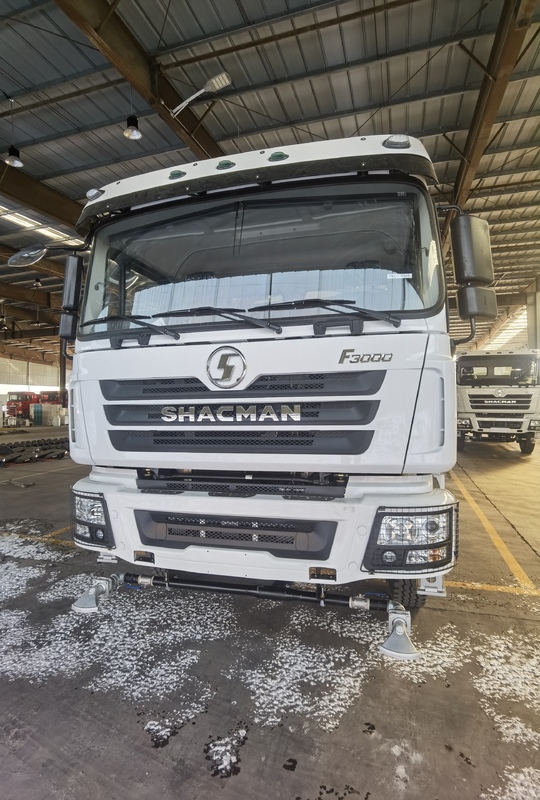

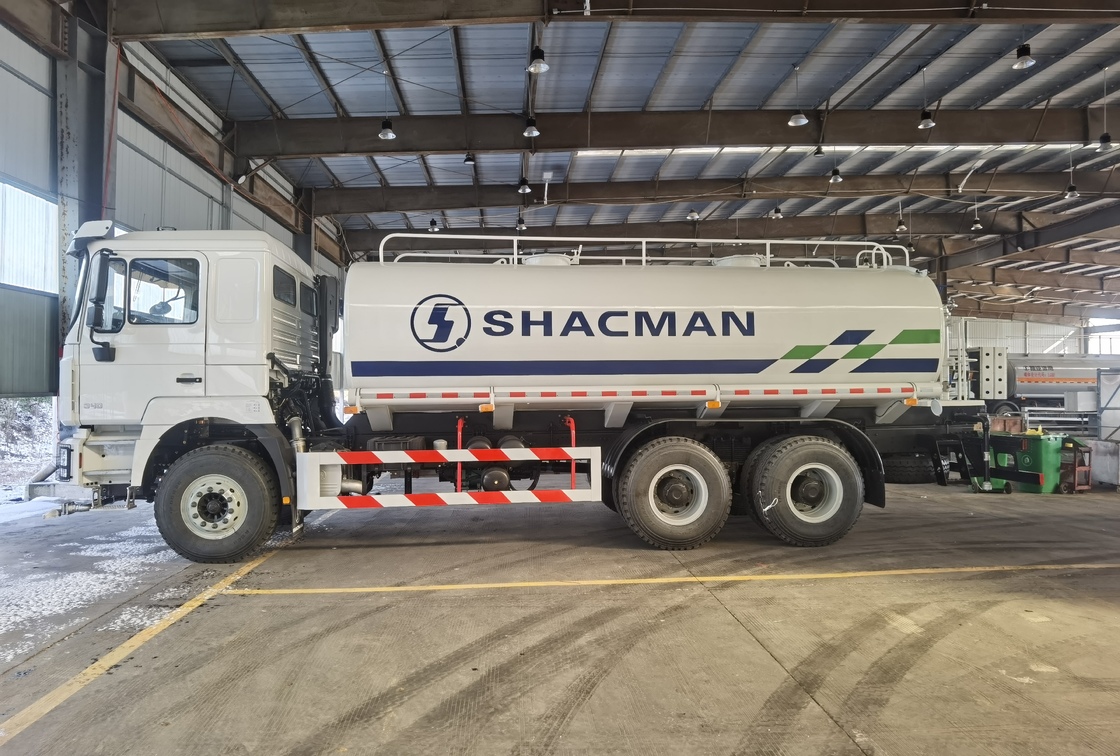

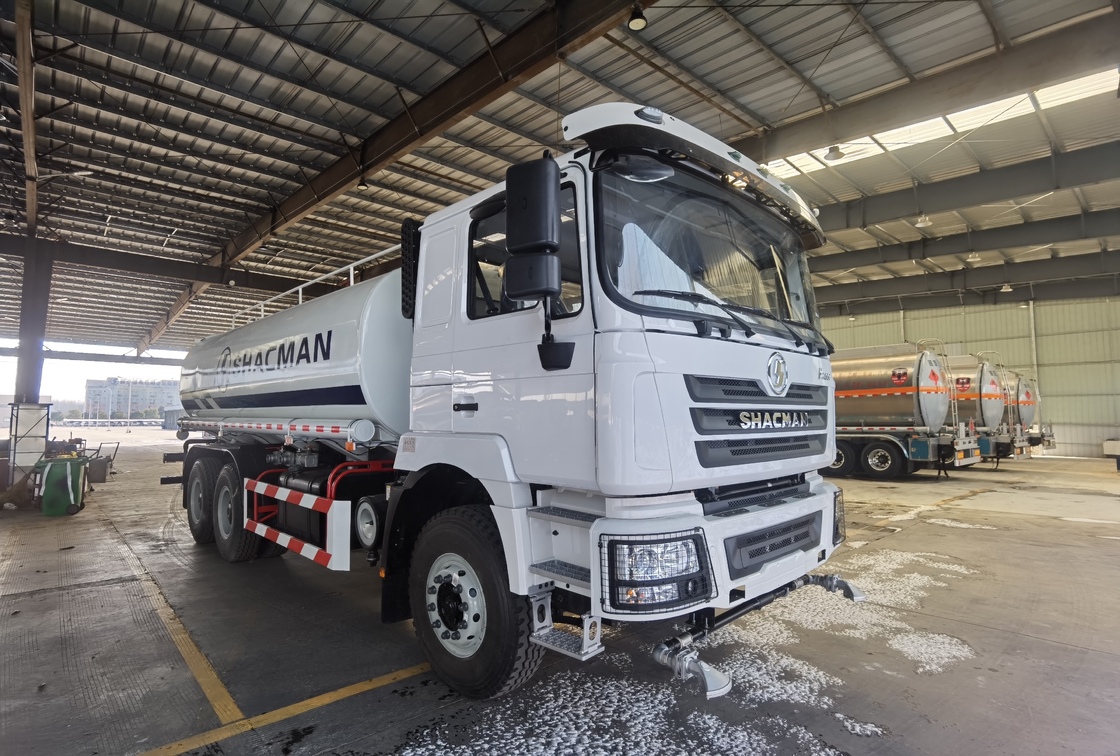

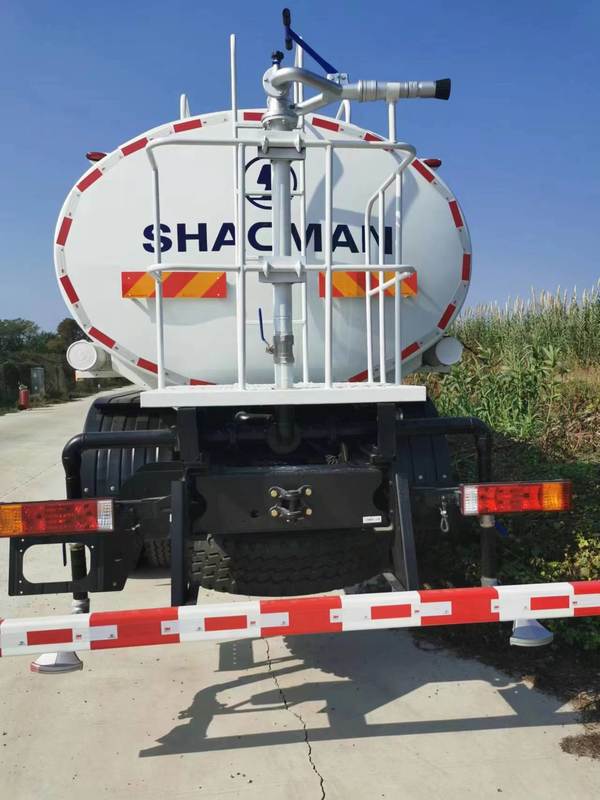

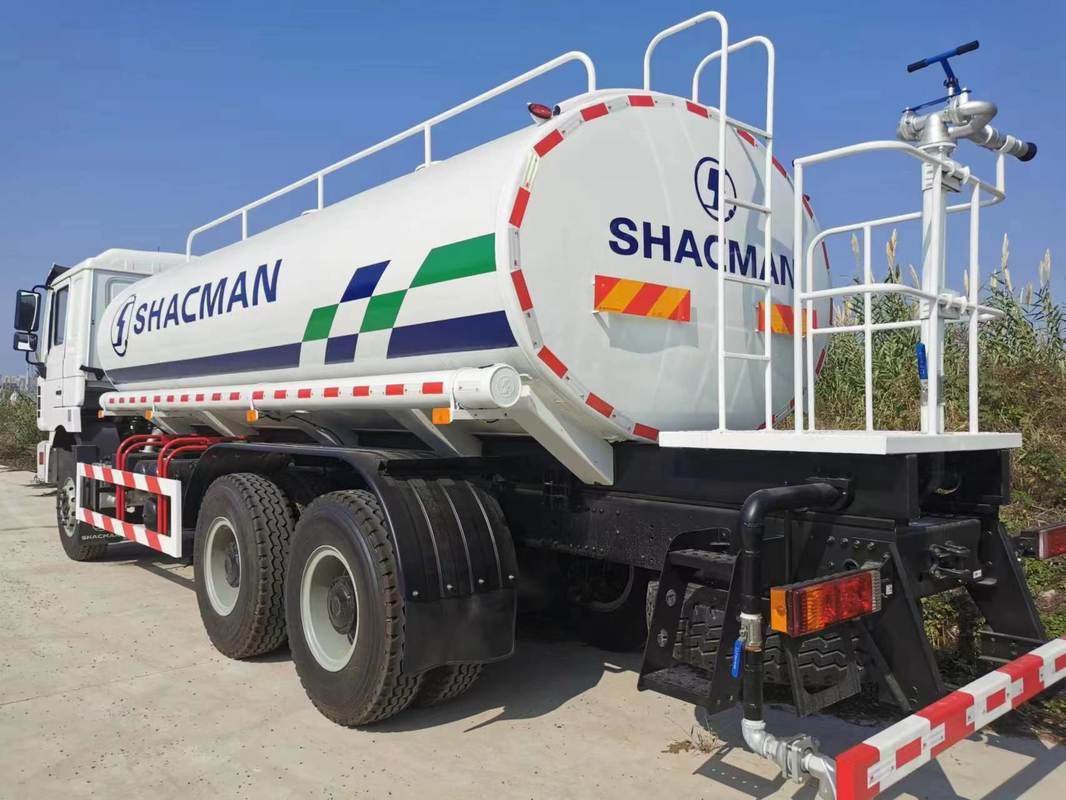

Product Image

SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle

300L Fuel Tank Water Truck

7.5T/2*13 Double Stage Axle Tanker Truck

4375+1400mm Wheelbase Water Tank Truck

300L Fuel Tank Water Truck

7.5T/2*13 Double Stage Axle Tanker Truck

4375+1400mm Wheelbase Water Tank Truck
