SHACMAN F3000 Dump Truck 8x4 380Hp EuroII Yellow domestic Front lift Tipper

SHACMAN F3000 Dump Truck 8x4 380Hp EuroII Yellow domestic Front lift Tipper

SHACMAN F3000 dump truck 8x4

heavy dump truck with warranty

380Hp EuroII front lift tipper

Lugar de origen:

Shaanxi, Xian

Nombre de la marca:

SHACMAN

Certificación:

ISO 9001/CCC

Número de modelo:

F3000

Éntrenos en contacto con
Solicitar una cita
Detalles del producto
Modelar:
SHACMAN SX3318DT366
Motor:
WEICHAI WP10.380E22
Transmisión:
10JSD180+QH50 RÁPIDO
Eje:
Doble-etapa del HOMBRE 2* 9.5T /2 *16 T, velocidad ratio-5.92
Base de ruedas:
1800+3575+1400 milímetros
Neumático:
12.00R20
Tanque de combustible:
300L
Embrague:
φ430 Diafragma de resorte
Entrada de aire:
Filtro de aire ordinario
Chasis:
850 × 300 ((8 + 7)
Suspensión:
PLATO DE PLACA MISLAYERA DEL FRANZA /TRANSIÓN PLACAS PRINCIPALES + 4 pernos en forma de U
Cabina:
top plano de la Medio-longitud
Color:
Verde rojo/verde de neón de la montaña/azul/brandy azules de Aurora White /Klein de la estrella y de
Resaltar:

SHACMAN F3000 dump truck 8x4

,

heavy dump truck with warranty

,

380Hp EuroII front lift tipper

Pago y términos de envío
Cantidad de orden mínima
1
Precio
negotiable
Detalles de empaquetado
Embalaje desnudo, con cera antes del envío.
Tiempo de entrega
45 días hábiles
Condiciones de pago
T/T, L/C
Capacidad de la fuente
5000 unidades/mes
Productos relacionados
Éntrenos en contacto con
Contacto ahora
Descripción de producto

SHACMAN F3000 Dump Truck 8x4 380Hp EuroII Yellow



Detailed Product Description

Model:SX3315DT366
Drive type:8x4
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Dump Truck Parameters

Model SX3315DT366
Drive type 8x4
Weight Gross Vehicle Weight ≤90
Dimensions Wheelbase/(mm) 1800+3575+1400
Performance Maximum speed/(km/h) 45~60/80
Ground clearance >314
Engine Brand WEICHAI
Model WP10.380E22
Power/(kw/HP) 279kw / 380Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×320 (8+7+8)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

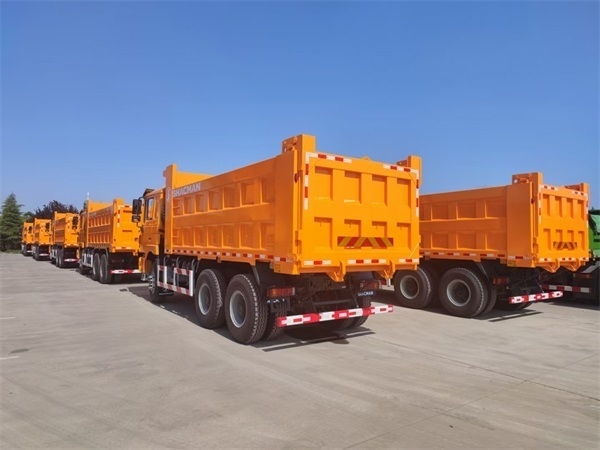

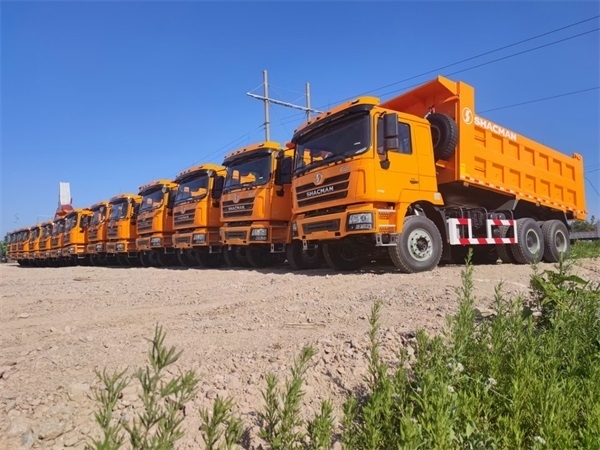

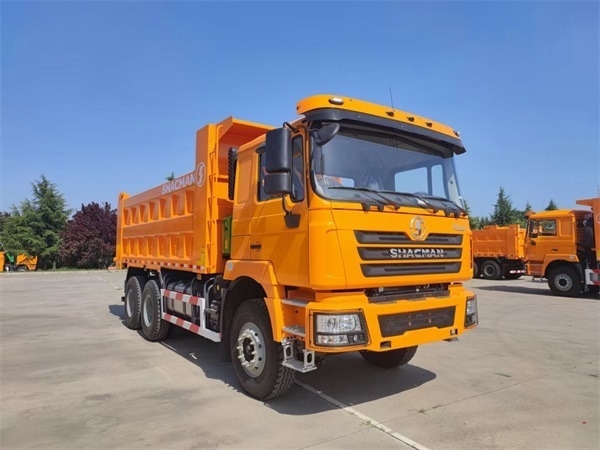

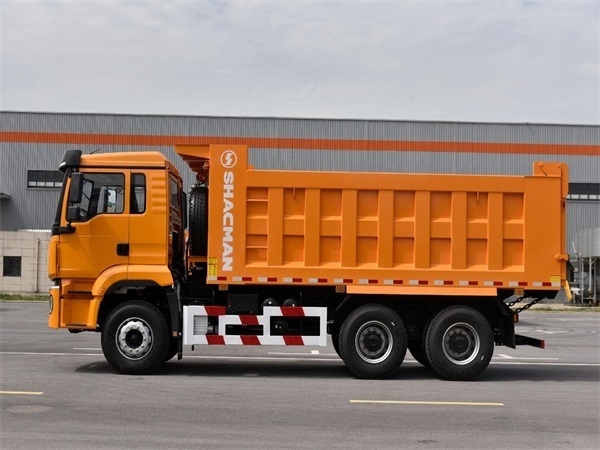

Detailed Image

SHACMAN F3000 Dump Truck 8x4 380Hp EuroII Yellow domestic Front lift Tipper 0







































About SHACMAN Trucks

  • Headquartered in Xi'an, Shaanxi Province, the company was formerly known as Shaanxi Automobile Manufacturing Plant, which was established in 1968. It is the main R&D and production base of heavy military vehicles in China, a large-scale full-series commercial vehicle manufacturer, and the first batch of the export base of complete vehicles and parts in China, with 25,400 employees and total assets of 73.1 billion.
  • The F3000 series benefits from the technological expertise of MAN, a globally renowned commercial vehicle manufacturer. Leveraging this collaboration, SHACMAN has integrated top-tier innovations into the F3000 series, resulting in trucks that boast both reliability and advanced features.


FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.


2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.


3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck,


4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
